The one detail that causes deck collapses: ledger board attachment

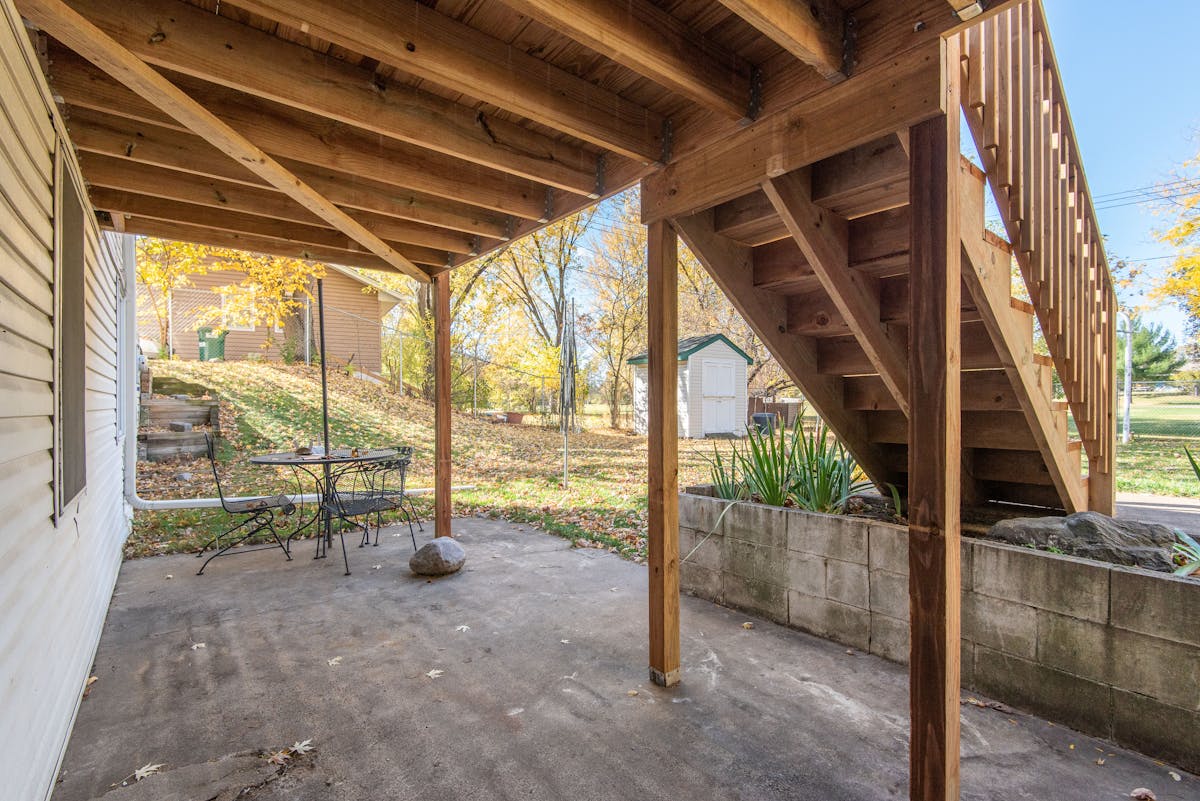

Wooden deck stairs attached to a house exterior showing a ledger attachment area — Photo via Pexels

Statistically, deck collapses start at the ledger. A survey of residential deck failures from 2005 to 2018 showed roughly 90 percent involved a ledger board connection that had either pulled away from the house or rotted through from water infiltration. The boards, joists, and posts almost never fail first. It\'s always the ledger.

Getting the ledger right is non-negotiable for any attached deck. Here\'s the complete playbook: what to use, what not to use, and the three inspection points that matter.

Why ledger failures happen

Two failure modes dominate.

Mode 1: fastener pull-out. The ledger is attached with nails, or with too few lag screws, or with screws driven into rotted framing. Over time (or under sudden load like a party crowd) the fasteners pull out of the house band joist. The ledger falls. The deck falls with it.

Mode 2: water infiltration and rot. No flashing, or bad flashing, allows water to run behind the ledger. Water gets trapped between the ledger and the house sheathing. The sheathing rots. The band joist rots. Eventually the fasteners are holding onto rotten wood that won\'t hold anything. Deck falls.

Both failure modes are 100 percent preventable with the right hardware and install sequence. This is not complicated work. It is critical work.

Fastener rules

Do not use nails. Nails pull out under load and over time. No code in the U.S. allows nailing a deck ledger anymore. Anyone who tells you different is 30 years out of date.

Do not use deck screws. Deck screws are shear-rated for one board into another, not structural. They will fail under deck live load.

Use lag bolts or structural screws. Specifically: 1/2 inch galvanized lag bolts with washers, driven through the ledger into the house band joist, OR Ledger-Lok structural screws (Fastenmaster Ledger-Lok), 3/8 inch diameter minimum, 5 inches long. Ledger-Lok has replaced lags in most new construction because it goes in faster and holds equivalent load.

Pattern: Two staggered rows of fasteners, 16 inches on center within each row, 2 inches from the top and bottom of the ledger, 2 inches from the ends. For a 20-foot ledger that\'s about 30 fasteners total.

Flashing rules

You must flash the top of the ledger. Water flows down the house siding; if it hits the top of the ledger without flashing, it runs into the seam between ledger and siding and rots everything.

Z-flashing: the standard. Aluminum or copper bent into a Z shape. The top leg tucks up behind the house siding (you have to lift siding to do this). The vertical leg covers the face of the ledger top. The bottom leg extends outward over the top of the ledger board about 1 inch. Water hits the flashing, runs out over the ledger, drips away.

Butyl flashing tape: optional additional layer. I use Grace Vycor Deck Protector or Deck2Wall tape applied between the ledger and the house sheathing, before the Z-flashing goes on. Belts and suspenders.

Drip edge: some inspectors require a drip-edge flashing at the bottom of the ledger too. Check with your building department.

Tension ties at the ends

This is where DIYers skip a step and inspectors fail decks.

A Simpson Strong-Tie DTT2Z tension tie goes at each end of the ledger, connecting the rim joist of the deck to the rim joist of the house. It prevents the deck from twisting away from the house under lateral load (wind, a crowd shifting to one side).

DTT2Z is installed by lag-bolting through the house framing into a blocking piece, then screwing the tension tie into the deck rim joist. You need two per deck minimum, at each end. The blocking piece inside the house joist cavity has to be solid and properly sized.

The install sequence that works

Measure and mark the ledger height. Subtract deck board thickness (1 inch for 5/4 boards) and rim joist depth (7.5 inches for 2x8) from your target deck surface height.
Remove siding from the ledger location plus 2 inches above. You need access to the sheathing and band joist.
Verify the band joist. Check for rot. If the band joist is rotten, you have a much bigger problem than the deck. Stop and address the rot.
Apply Vycor or Deck2Wall tape to the house sheathing where the ledger will land. Run it up 6 inches above the ledger top and wrap 2 inches onto the face.
Install Z-flashing, tucking the top leg up behind the siding that remains above.
Hang the ledger temporarily with a couple of 16-penny nails to hold position. Level it.
Drive lag bolts or Ledger-Lok screws in the staggered pattern described above.
Install DTT2Z tension ties at each end.
Reinstall or replace siding above the ledger.
Schedule framing inspection before proceeding to joists.

The whole ledger installation takes about 4 to 6 hours for a 20-foot span with two people. It\'s slow, careful work. Don\'t rush it.

Hardware shopping list

For a 20-foot ledger with DTT2Z tension ties:

Ledger-Lok 5-inch screws, 30 count ($35)
Grace Vycor Deck Protector, 10 lf ($28)
Copper or aluminum Z-flashing, 20 lf ($45)
Simpson Strong-Tie DTT2Z tension ties, 2 count ($32)
Blocking lumber (2x6 PT cut to fit inside band joist cavity) ($8)
3-inch structural screws for tension tie attachment ($12)

Total hardware cost: about $160 for a bulletproof ledger connection.

Signs an existing ledger is failing

If you own a house with an older attached deck, check the ledger for these warning signs:

Gap between the ledger and the house siding (more than 1/8 inch)
Water staining on the house sheathing above or below the ledger
Rust stains running down the siding from the fastener heads
Soft spots when you press on the ledger with your thumb
Visible nails (any nails) instead of lag heads or structural screws
No Z-flashing visible at the top of the ledger
Deck surface sagging or pulling away from the house

If you see any of these, get a structural inspection before you host the next gathering on that deck. Ledger failures don\'t have warning signs hours in advance; they fail suddenly.

The $60 inspection

If you have any doubt, most municipalities offer a pre-purchase or retroactive deck inspection for $60 to $150. A licensed structural engineer can do a detailed ledger assessment for $200 to $400. Money well spent on any deck older than 15 years or any deck you didn\'t build yourself.

For your new build

If you\'re building a new deck, run your numbers through the DeckCalc and budget $200 to $400 extra for hardware and flashing above the quick-quote estimate. Your contractor\'s bid probably includes the ledger work; your DIY materials list should include every item above. The ledger connection is where cheap contractors cut corners, so when you get quotes, ask specifically: "what flashing do you use, and is a Simpson DTT2Z tension tie included?" The answer tells you everything.
